5kg-20KG Precious Metal Atomizing Powder Production Systems OEM Supported
| MOQ: | 1unit |
| Price: | negotiable |
| Standard Packaging: | Outer packing: Wooden case |
| Delivery Period: | 10-15 working days |
| Payment Method: | T/T,L/C |
| Supply Capacity: | 200,00units per month |
Detail Information
Place of Origin
Shenzhen, China
Brand Name
OEM & ODM
Certification
ISO, CE, SGS
Model Number
SSM-MAP5 / SSM-MAPP5 / SSM-MAP20
Product Name:
100/150/200 Mesh Precious Metal Atomizing Powder
Rated Voltage:
380V, 3 Phases, 50/60Hz
Rated Power:
30KW/52KW,Depends On The Model
Max Temperature:
Maximum Up To 1300℃,1500 ℃,2100℃,Depends On The Model
Processable Materials:
Platinum, Gold, K-gold, Silver, Copper
Warranty Period:
2-year Warranty
Certification:
ISO, CE And SGS
Other Service:
Customizable, OEM & ODM Available, One-stop Solutions Provided
Highlight:
Metal Atomizing Powder Production Systems
,Precious Metal Powder Production Systems
,Gold Powder Making Machine OEM
Product Description

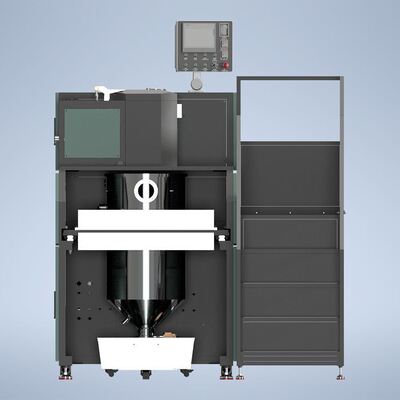

5kg-20KG SSM-MAP Series Precious Metal Atomizing Powder Making Equipment OEM Supported
Integrated Product Description (SSM-MAP5 / SSM-MAPP5 / SSM-MAP20)
1. Product Overview
The SSM-MAP series covers complete atomizing powder production solutions from lab small capacity to industrial mass production, including 100 mesh, 150 mesh and 200 mesh three mainstream fineness options. The series adopts German atomization technology and imported core parts, stably processing platinum, gold, K-gold, silver and copper into uniform spherical metal powder.
For 200-mesh fine powder demand, expandable capacities of 10kg, 20kg, 50kg and 100kg gold melting load are available to match growing production output. The whole line is widely used for jewelry spraying, 3D printing, powder metallurgy and precious metal alloy research.
For 200-mesh fine powder demand, expandable capacities of 10kg, 20kg, 50kg and 100kg gold melting load are available to match growing production output. The whole line is widely used for jewelry spraying, 3D printing, powder metallurgy and precious metal alloy research.
2. Core Advantages
✅ Full Mesh Specification Coverage
Independent models customized for 100 mesh, 150 mesh and 200 mesh powder production, freely matching different fineness standards of downstream industries.
✅ Wide Melting Capacity Selection
Small 5kg lab-grade units for formula testing; 20kg industrial non-vacuum model for mass production; extra 10/50/100kg expandable capacities for 200-mesh fine powder.
✅ High-Temperature Adaptation for Multiple Metals
SSM-MAPP5 supports max 2100°C high temperature to melt high-melting-point platinum; other models reach 1300–1500°C for gold, silver and copper alloys.
✅ German Imported Core Atomization Components
Original German atomization plate and mature atomizing technology ensure narrow particle size distribution, high sphericity and stable powder quality batch by batch.
✅ Compact Unified Footprint for Small Workshop
5kg small machines share identical outer dimensions, convenient for placement and layout in laboratories or small processing workshops.
✅ Factory Direct Supply & Customization Support
We are original manufacturer with standard stock for fast delivery. OEM private label and ODM parameter modification are fully supported to meet exclusive production plans.
3. Working Principle
- Induction Heating Melting: Precious metal raw materials are rapidly heated to homogeneous molten liquid under precise temperature control.
- High-pressure Atomization: High-speed fluid impacts molten metal flow to split liquid metal into tiny droplets.
- Rapid Cooling Solidification: Droplets cool instantly to form spherical metal powder, then collected and screened.
- Optional Vacuum Argon Shield (Custom Version): Sealed chamber filled with inert gas to isolate air and avoid metal oxidation for high-purity powder.
4. Technical Parameter Comparison Table
| Specification Item | SSM-MAP5 (100 Mesh, 5kg Gold) | SSM-MAPP5 (150 Mesh, 5kg Pt) | SSM-MAP20 (200 Mesh Non-Vacuum, 20kg Gold) |
|---|---|---|---|
| Model No. | SSM-MAP5 | SSM-MAPP5 | SSM-MAP20 |
| Rated Voltage | 380V, 50/60Hz | 380V, 50/60Hz | 380V, 50/60Hz |
| Total Power | 30KW | 30KW | 52KW |
| Max Working Temp | 1500°C | 2100°C | 1300°C |
| Standard Melting Capacity | 5kg (Gold) | 5kg (Platinum) | 20kg (Gold) |
| Optional Capacity for 200 Mesh | 10/20/50/100kg | 10/20/50/100kg | 10/20/50/100kg |
| Target Powder Mesh | Fixed 100 mesh | Fixed 150 mesh | 10–200 mesh adjustable |
| Temperature Accuracy | ±1℃ | ±1℃ | ±1℃ |
| Processable Materials | Platinum, Gold, K-gold, Silver, Copper | Gold, K-gold, Silver, Copper | Gold, K-gold, Silver, Copper |
| Atomization Core Parts | German imported accessories | German imported accessories | German imported accessories |
| Overall Dimension | 1180×1070×1925mm | 1180×1070×1925mm | 1180×1070×1925mm |
| Approx. Net Weight | 500kg | 450kg | 480kg |
| Vacuum Structure | Non-vacuum standard | Non-vacuum standard | Non-vacuum standard |
Note: Vacuum shielding system, melting capacity, target mesh and power parameters can be customized on request.
5. Target Application Fields
- Jewelry factory raw material spraying & electroplating production
- Precious metal 3D printing and additive manufacturing plants
- High-purity alloy powder metallurgy processing workshops
- Platinum, gold alloy laboratory formula research
- Dental and electronic precision component material suppliers
6. FAQ
Q1: How to choose the suitable mesh model?
A1: Select SSM-MAP5 for coarse 100-mesh powder; SSM-MAPP5 for medium 150-mesh powder and platinum melting; SSM-MAP20 for flexible 10–200 mesh adjustable fine powder mass production.
Q2: Can I get larger melting capacity for 200-mesh powder?
A2: Yes, we provide 10kg, 20kg, 50kg and 100kg gold melting capacity options specially for 200-mesh fine powder production.
Q3: Does the 150 mesh model support platinum melting?
A3: SSM-MAPP5 reaches 2100°C maximum temperature, which can fully melt platinum and other high melting point precious metals.
Q4: Are standard machines in stock and customizable?
A4: Standard specifications are available for fast delivery; OEM private labeling and ODM technical adjustment services are supported.
Why Choose SanSong Melt?
-
1.Professional Precious Metal Equipment ManufacturerWe focus on the R&D and manufacturing of melting, casting, granulating and rolling equipment for precious metals. Our products are widely used in jewelry factories, refineries, dental material factories and electronic material enterprises. -
Strict Quality ControlEach machine undergoes full-load testing and aging inspection before delivery. Core components are selected for stable performance and long-term continuous operation.
-
Factory Direct PriceWe provide factory direct sales without intermediate markup, offering competitive pricing for standard machines and custom solutions.
-
Ready Stock and Fast DeliveryStandard models are available in stock, helping customers shorten procurement cycles and start production quickly.
-
Customization and OEM/ODM ServiceWe accept custom vacuum systems, power parameters, mold designs and private label services.
-
Global After-Sales SupportWe provide 2-year warranty, online technical support, remote commissioning guidance and operator training.
