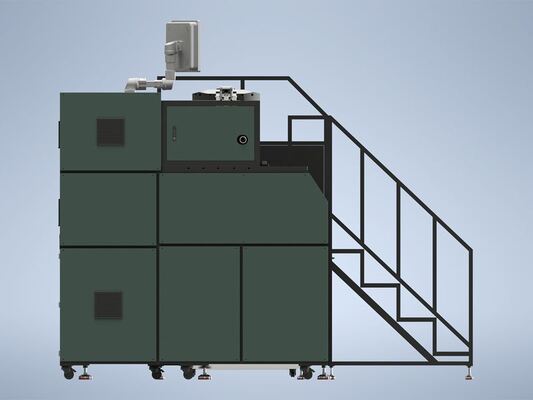

100kg High Output Gold Leaf Making Machine PLC Controlled SSM-GSM100
| MOQ: | 1unit |
| Price: | negotiable |
| Standard Packaging: | Outer packing: Wooden case |
| Delivery Period: | 10-15 working days |
| Payment Method: | T/T,L/C |
| Supply Capacity: | 200,00units per month |
Detail Information
Place of Origin
Shenzhen, China
Brand Name
OEM & ODM
Certification
ISO, CE, SGS
Model Number
SSM-GSM100
Product Name:
SSM-GSM5100 Gold Slicer Making Machine
Rated Voltage:
380V, 3 Phases, 50/60Hz
Single Batch Gold Capacity:
100kg
Total Heating Power:
50KW
Control Mode:
PLC Touch Screen Automatic Control
Max Temperature:
1500°C
Processable Materials:
Gold, Silver, Copper
Warranty Period:
2-year Warranty
Adjustable Finished Flake Thickness:
0.1mm – 0.5mm
Cooling Mode:
Running Water / Industrial Water Chiller
Certification:
ISO, CE And SGS
Other Service:
Customizable, OEM & ODM Available, One-stop Solutions Provided
Highlight:
High Output Gold Leaf Making Machine
,Gold Leaf Making Machine PLC Controlled
,100kg Gold Flakes Making Machine
Product Description
100kg PLC Controlled High Output Gold Flake Production Machine Factory Direct Supply
1. Product Overview
SSM-GSM100 is our flagship heavy-duty all-in-one gold flakes processing machine, specially built for large-scale precious metal factories with high daily mass production demands. It integrates induction melting, dual inert gas anti-oxidation shielding, continuous thin strip rolling and automatic precision slicing into one compact unit, supporting a maximum single-batch gold melting capacity of 100kg to drastically lift overall output.
Powered by 50KW stable induction heating, the machine reaches a max working temperature of 1500°C and completes one full melting cycle within only 15–25 minutes. Equipped with argon & nitrogen dual protective gas system, it thoroughly isolates oxygen during melting and forming to avoid dark oxidation spots, producing bright, high-purity gold, silver and copper flakes with adjustable thickness ranging from 0.1mm to 0.5mm. Two cooling modes (running water circulation or independent water chiller) are available to fit different factory water supply conditions.
To cover all scales of production, we also provide three smaller standard models in the same SSM-GSM series for your selection: 5kg (SSM-GSM5), 20kg (SSM-GSM20) and 50kg (SSM-GSM50). You can choose the matching capacity according to your daily processing volume, and all series models share unified intelligent PLC touch screen control and consistent flake thickness adjustment function.
2. Core Advantages
✅ Flagship 100kg Large Single Batch Capacity for Mass Production
100kg one-time gold feeding capacity minimizes repeated material feeding operations, greatly boosting continuous production efficiency. Perfect for large jewelry raw material plants, precious metal refineries and high-volume handicraft manufacturers to fulfill bulk orders with shorter lead time.
✅ 50KW High Power Uniform Heating System
Matched 50KW high-power induction heating ensures fast and even melting for large batches of metal ingots within 15–25 minutes per cycle, no alloy segregation, guaranteeing uniform texture of metal strips and finished flakes.
✅ Dual Inert Gas Anti-Oxidation Protection
Supports optional argon or nitrogen shielding gas to cut off air contact throughout the whole production process. Finished metal flakes retain bright metallic luster without oxidation discoloration, reducing precious metal waste and raising the commercial value of your end products.
✅ 0.1–0.5mm Freely Adjustable Flake Thickness
Operators can directly adjust flake thickness from ultra-thin 0.1mm to 0.5mm via touch screen, fully satisfying diverse application needs such as jewelry surface decoration, furniture inlay and electroplating coating raw materials.
✅ Dual Flexible Cooling Solutions
Two cooling options for flexible workshop layout: low-cost running water circulation for factories with stable water supply; industrial water chiller for sites lacking reliable water circulation, extending core component service life.
✅ Full Series Multi-Capacity Optional for Different Production Scales
Apart from this flagship 100kg model, we supply SSM-GSM5 (5kg), SSM-GSM20 (20kg) and SSM-GSM50 (50kg) for small trial workshops, medium-volume processing factories and mid-sized mass production lines respectively. Unified control logic makes operation learning consistent across all models.
✅ Integrated Compact Frame & Intelligent PLC Touch Control
Overall dimension 1260×1060×1920mm, net weight approx. 500kg, all melting, rolling and slicing procedures integrated to save workshop floor space. Humanized touch screen interface simplifies parameter setting, lowering training cost for new operators.
✅ Source Manufacturer OEM & ODM Customization
Standard SSM-GSM100 machines are in stock for fast delivery. We support OEM private logo printing and ODM customization on flake shape, gas configuration and technical parameters. The three smaller capacity models also accept customized adjustments.
3. Working Flow
- Load gold, silver or copper raw ingots into the melting crucible, set target temperature, flake thickness and shielding gas type on the PLC touch screen.
- 50KW induction heating rapidly melts the large batch metal under inert gas protection within 15–25 minutes to prevent oxidation.
- Molten metal flows into rolling molds to form uniform thin strips with customizable thickness of 0.1–0.5mm.
- Automatic conveyor delivers thin strips to precision cutting station to produce neat, glossy decorative metal flakes.
- Finished high-purity metal flakes fall into the collection bin for direct packaging or secondary deep processing.
4. Full Series Technical Parameter Comparison Table
| Item | SSM-GSM100 (Flagship 100kg) | SSM-GSM50 (50kg) | SSM-GSM20 (20kg) | SSM-GSM5 (5kg) |
|---|---|---|---|---|
| Model No. | SSM-GSM100 | SSM-GSM50 | SSM-GSM20 | SSM-GSM5 |
| Input Voltage | 380V, 50/60Hz | 380V, 50/60Hz | 380V, 50/60Hz | 380V, 50/60Hz |
| Heating Power | 50KW | 30KW | 30KW | 30KW |
| Max Working Temp | 1500°C | 1500°C | 1500°C | 1500°C |
| Single Batch Gold Capacity | 100kg | 50kg | 20kg | 5kg |
| Melting Time per Batch | 15–25 mins | 15–25 mins | 15–25 mins | 15–25 mins |
| Protective Gas | Argon / Nitrogen | Argon / Nitrogen | Sealed anti-oxidation | Sealed anti-oxidation |
| Cooling Mode | Running Water / Water Chiller | Running Water / Water Chiller | Running Water / Water Chiller | Running Water / Water Chiller |
| Adjustable Flake Thickness | 0.1–0.5mm | 0.1–0.5mm | 0.1–0.5mm | 0.1–0.5mm |
| Applicable Metals | Gold, Silver, Copper | Gold, Silver, Copper | Gold, Silver, Copper | Gold, Silver, Copper |
| Overall Dimension | 1260×1060×1920mm | 1260×1060×1920mm | 1120×1080×1800mm | Compact custom size |
| Approx. Net Weight | 500kg | 400kg | 350kg | Light compact |
| Control System | PLC Touch Screen Auto Control | PLC Touch Screen Auto Control | PLC Touch Screen Auto Control | PLC Touch Screen Auto Control |
Note: All technical indicators can be customized according to customers’ actual production standards.
5. Application Fields
Main Application for SSM-GSM100 100kg Model
Large-scale precious metal refineries, mass-production jewelry raw material factories, high-end furniture & art craft manufacturers, large electroplating raw material supply plants with high daily output requirements.
Matching Scenarios for Other Series Models
- SSM-GSM5 (5kg): Small handicraft studios, sample trial production, small-batch custom order processing
- SSM-GSM20 (20kg): Medium-sized jewelry workshops, daily stable medium-volume production
- SSM-GSM50 (50kg): Mid-large processing factories stepping up to mass production
6. FAQ
Q1: What core advantages does the 100kg flagship model have compared with smaller capacity machines?
A1: It adopts 50KW high-power heating to support 100kg single-batch melting, which greatly reduces feeding frequency and improves daily production capacity. Equipped with dual inert gas anti-oxidation system, it is the best choice for factories with continuous mass production and high-purity flake requirements.
Q2: How do I select the suitable capacity model?
A1: If you need large-volume continuous production, choose SSM-GSM100 flagship model. For medium output demands, pick SSM-GSM50 or SSM-GSM20; select SSM-GSM5 only for small sample making and low-volume trial orders.
Q3: Can flake thickness and cutting shape be customized on the 100kg machine?
A3: Yes, flake thickness can be adjusted between 0.1–0.5mm freely on touch screen. Custom cutting molds for special flake shapes are available on request.
Q4: Do all series models support OEM customization and fast delivery?
A4: SSM-GSM100 flagship machines are in stock for quick shipment; the other 3 capacity specifications also have standard inventory. We provide OEM private logo printing and ODM parameter modification for the whole series.
A4: SSM-GSM100 flagship machines are in stock for quick shipment; the other 3 capacity specifications also have standard inventory. We provide OEM private logo printing and ODM parameter modification for the whole series.
Why Choose SanSong Melt?
-
Professional Precious Metal Equipment ManufacturerWe focus on the R&D and manufacturing of melting, casting, granulating and rolling equipment for precious metals. Our products are widely used in jewelry factories, refineries, dental material factories and electronic material enterprises.
-
Strict Quality ControlEach machine undergoes full-load testing and aging inspection before delivery. Core components are selected for stable performance and long-term continuous operation.
-
Factory Direct PriceWe provide factory direct sales without intermediate markup, offering competitive pricing for standard machines and custom solutions.
-
Ready Stock and Fast DeliveryStandard models are available in stock, helping customers shorten procurement cycles and start production quickly.
-
Customization and OEM/ODM ServiceWe accept custom vacuum systems, power parameters, mold designs and private label services.
-
Global After-Sales SupportWe provide 2-year warranty, online technical support, remote commissioning guidance and operator training.
