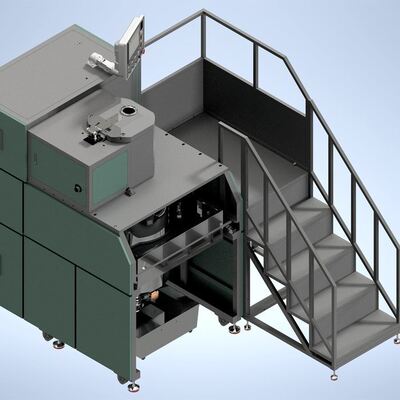

5kg Integrated Gold Leaf Making Machine 380V Precious Metal Melting Flake Cutting Equipment
| MOQ: | 1unit |
| Price: | negotiable |
| Standard Packaging: | Outer packing: Wooden case |
| Delivery Period: | 10-15 working days |
| Payment Method: | T/T,L/C |
| Supply Capacity: | 200,00units per month |
Detail Information
Place of Origin
Shenzhen, China
Brand Name
OEM & ODM
Certification
ISO, CE, SGS
Model Number
SSM-GSM5
Product Name:
Gold Leaf Making Machine
Rated Voltage:
380V, 3 Phases, 50/60Hz
Total Heating Power:
30KW
Control Mode:
PLC Touch Screen Automatic Control
Max Temperature:
1500°C
Processable Materials:
Gold, Silver, Copper
Warranty Period:
2-year Warranty
Certification:
ISO, CE And SGS
Other Service:
Customizable, OEM & ODM Available, One-stop Solutions Provided
Highlight:
Integrated Gold Leaf Making Machine
,Gold Leaf Making Machine 380V
,5kg Goldleaf Processing Machine
Product Description
5kg Integrated Gold Slicer Making Machine 380V Precious Metal Melting & Flake Cutting Equipment
Product Overview
SSM-GSM5 precious metal slicer integrated machine combines induction melting, continuous sheet forming and automatic slicing functions in one unit. It can melt gold, silver and copper ingots into uniform thin metal strips, then cut them into flake metal slices in one single production line.
With standard 5kg single-batch gold melting capacity and 30KW stable heating power, it reaches up to 1500°C working temperature to melt various precious metal alloys. The finished gold slices feature consistent thickness, bright metallic luster and neat cutting edges, widely used for jewelry surface decoration, handicraft inlay and electroplating raw materials.
With standard 5kg single-batch gold melting capacity and 30KW stable heating power, it reaches up to 1500°C working temperature to melt various precious metal alloys. The finished gold slices feature consistent thickness, bright metallic luster and neat cutting edges, widely used for jewelry surface decoration, handicraft inlay and electroplating raw materials.
Core Advantages
- All-in-one Integrated Design, Save Workshop Space
Integrates melting, rolling and slicing processes, no need for separate melting furnace and slicer equipment, greatly reducing workshop layout occupation and material transfer labor cost.
- Stable High-Temperature Melting System
30KW induction heating system, max temperature up to 1500°C, evenly melts gold, silver and copper without alloy segregation, ensuring uniform texture of raw metal strips.
- Precision Automatic Slicing for Neat Metal Flakes
Equipped with high-speed cutting mechanism, outputs thin uniform metal slices with smooth edges, stable slice size and consistent thickness, improving finished product utilization rate.
- Simple Operation & PLC Touch Screen Control
Human-machine touch screen operation interface, adjustable melting temperature, strip thickness and slicing size according to production demands, low technical threshold for workers.
- Factory Direct Supply with Custom Support
We are original manufacturer with standard machines in stock for fast delivery. OEM private label and ODM parameter adjustment are fully supported to match exclusive production requirements.
Working Principle
- Put precious metal raw material into crucible, heat to molten state under constant temperature control.
- Molten metal flows into continuous rolling mold to form uniform thin metal strips.
- Automatic conveying system sends strips to cutting station for fixed-size slicing.
- Neat metal flakes fall into collection box for direct packaging or secondary processing.
Technical Parameters
| Item | SSM-GSM5 |
|---|---|
| Model No. | SSM-GSM5 |
| Input Voltage | 380V, 50/60Hz |
| total Heating Power | 30KW |
| Max Working Temperature | 1500°C |
| Standard Gold Casting & Melting Capacity | 5kg per batch |
| Processable Metals | Gold, Silver, Copper |
| Control Mode | PLC Touch Screen Automatic Control |
| Finished Product | Uniform thin precious metal slices/flakes |
Application Fields
- Jewelry factory decorative gold/silver flake raw material production
- Handicraft, artware and furniture metal inlay processing
- Electroplating and surface coating precious metal raw material workshops
- Small and medium precious metal processing factories with integrated melting & slicing demands
FAQ
Q1: Can this machine finish melting and slicing in one procedure?
A1: Yes, it is an all-in-one integrated machine, completing melting, strip rolling and slicing automatically without intermediate transfer.
Q2: What metal materials can this equipment process?
A2: It supports gold, silver and copper raw materials, meeting most common precious metal slicing production needs.
Q3: Can I customize slice size and metal strip thickness?
A3: Sure, all forming and cutting parameters can be adjusted via touch screen, and customized molds are available for special slice sizes.
Why Choose SanSong Melt?
-
1.Professional Precious Metal Equipment ManufacturerWe focus on the R&D and manufacturing of melting, casting, granulating and rolling equipment for precious metals. Our products are widely used in jewelry factories, refineries, dental material factories and electronic material enterprises. -
Strict Quality ControlEach machine undergoes full-load testing and aging inspection before delivery. Core components are selected for stable performance and long-term continuous operation.
-
Factory Direct PriceWe provide factory direct sales without intermediate markup, offering competitive pricing for standard machines and custom solutions.
-
Ready Stock and Fast DeliveryStandard models are available in stock, helping customers shorten procurement cycles and start production quickly.
-
Customization and OEM/ODM ServiceWe accept custom vacuum systems, power parameters, mold designs and private label services.
-
Global After-Sales SupportWe provide 2-year warranty, online technical support, remote commissioning guidance and operator training.
