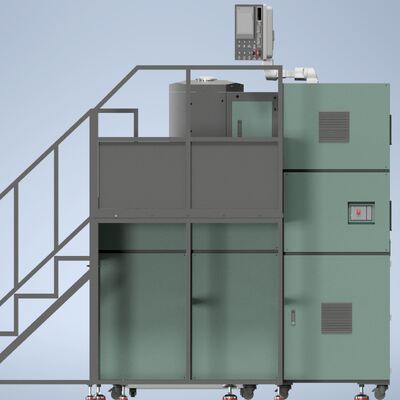

50kg Large Batch Precious Metal Flake Making Machine For Gold Silver Copper
| MOQ: | 1unit |
| Price: | negotiable |
| Standard Packaging: | Outer packing: Wooden case |
| Delivery Period: | 10-15 working days |
| Payment Method: | T/T,L/C |
| Supply Capacity: | 200,00units per month |
Detail Information
Place of Origin
Shenzhen, China
Brand Name
OEM & ODM
Certification
ISO, CE, SGS
Model Number
SSM-GSM50
Product Name:
SSM-GSM50 Gold Slicer Making Machine
Rated Voltage:
380V, 3 Phases, 50/60Hz
Total Heating Power:
30KW
Control Mode:
PLC Touch Screen Automatic Control
Max Temperature:
1500°C
Processable Materials:
Gold, Silver, Copper
Warranty Period:
2-year Warranty
Adjustable Finished Flake Thickness:
0.1mm – 0.5mm
Cooling Mode:
Running Water / Industrial Water Chiller
Certification:
ISO, CE And SGS
Other Service:
Customizable, OEM & ODM Available, One-stop Solutions Provided
Highlight:
Large Batch Metal Flake Making Machine
,Precious Metal Flake Making Machine
,50kg Silver Leaf Making Machine
Product Description
50kg Large Batch Precious Metal Melting & Slicing Equipment For Gold Silver Copper
1. Product Overview
SSM-GSM50 high-capacity integrated gold flakes processing machine is a fully automatic production unit designed for medium-to-large precious metal processing factories. It integrates induction melting, anti-oxidation shielding, continuous thin strip rolling and precision flake slicing in one single machine, with a maximum single-batch gold melting capacity of 50kg to greatly boost daily output.
Equipped with argon & nitrogen dual inert gas protection system, it effectively avoids oxidation and discoloration of molten gold, silver and copper, delivering bright, high-purity metal flakes with adjustable thickness ranging from 0.1mm to 0.5mm. The whole melting cycle only takes 15–25 minutes, shortening waiting time between batches. It supports two cooling options: circulating running water or independent industrial water chiller, adapting to different factory workshop infrastructure. This all-in-one equipment eliminates the need for separate melting furnace and slicing machine, saving floor space and cutting labor transfer costs significantly.
2. Core Advantages
✅ Large 50kg Single Batch Melting Capacity, High Production Output
50kg one-time gold feeding capacity perfectly matches mass production demand of jewelry raw material factories. Short melting cycle of 15–25 minutes improves continuous production efficiency, helping clients fulfill large bulk orders within shorter lead time.
✅ Dual Inert Gas Anti-Oxidation Protection
Supports argon or nitrogen shielding gas to isolate oxygen during melting and rolling procedures. Finished gold flakes maintain bright metallic surface without black oxide layer, reducing material waste and upgrading product grade for high-end handicraft & electroplating clients.
✅ Adjustable Flake Thickness 0.1–0.5mm
Freely adjust metal flake thickness from ultra-thin 0.1mm to 0.5mm via touch screen control. Meet diverse usage scenarios including surface gilding, artware inlay and decorative craft production.
✅ Dual Flexible Cooling Solutions
Two cooling modes optional: running water circulation for small workshops, and matched water chiller for factories without stable water supply. Stable cooling ensures consistent rolling forming effect and long service life of internal core components.
✅ Compact Integrated Structure with Stable Operation
Overall dimension 1260×1060×1920mm, net weight around 400kg. Integrated frame design saves workshop area; PLC touch screen intelligent control lowers operation difficulty for new workers.
✅ Source Manufacturer Customization Service
Standard SSM-GSM50 models are in stock for fast delivery. We support OEM private logo printing and ODM adjustment on flake size, melting parameters and gas configuration to fit your unique production standards.
3. Working Flow
- Load gold, silver or copper raw ingots into melting crucible, set target temperature and shielding gas type on PLC touch screen.
- 30KW induction heating system rapidly heats metal to molten state within 15–25 minutes under inert gas protection to prevent oxidation.
- Molten metal flows into rolling molds to form uniform thin strips with customizable thickness between 0.1–0.5mm.
- Automatic conveyor sends thin strips to precision cutting station, slicing into standard decorative metal flakes.
- Finished bright gold/silver flakes fall into collection bin for direct packaging or secondary processing.
4. Technical Parameters Table
| Item | SSM-GSM50 Gold Flakes Processing Machine |
|---|---|
| Model No. | SSM-GSM50 |
| Input Voltage | 380V, 50/60Hz |
| Total Heating Power | 30KW |
| Max Working Temperature | 1500°C |
| Standard Single Batch Gold Casting Capacity | 50kg |
| Melting Cycle Time | 15–25 minutes per batch |
| Protective Shielding Gas | Argon / Nitrogen (optional) |
| Cooling Mode | Running Water / Industrial Water Chiller |
| Adjustable Finished Flake Thickness | 0.1mm – 0.5mm |
| Applicable Raw Materials | Gold, Silver, Copper |
| Overall Dimension | 1260×1060×1920 mm |
| Approx. Net Weight | 400 KG |
| Control System | PLC Touch Screen Automatic Control |
| Final Output | High-gloss anti-oxidation precious metal flakes |
5. Application Fields
- Large-scale jewelry raw material mass production factories
- High-end furniture, art craft and decoration manufacturers requiring bright gold flakes
- Electroplating factories producing high-purity precious metal coating materials
- Medium & large precious metal refineries with high daily output demands
-
6. FAQ
Q1: What is the advantage of inert gas protection?
A1: Argon or nitrogen completely isolates air oxygen during melting, so metal will not oxidize or turn dark. The finished flakes have brighter luster and higher market value, reducing scrap loss caused by oxidation.
Q2: Can I adjust the thickness of finished gold flakes?
A2: Yes, flake thickness is adjustable from 0.1mm to 0.5mm directly through the touch screen. We also provide customized cutting molds for special flake shapes.
Q3: What cooling solution should I choose for my factory?
A3: If your factory has stable circulating tap water, running water cooling is cost-effective. If water supply is unstable, matching independent water chiller is recommended to guarantee continuous machine operation.
Q4: Is after-sales technical support available for overseas clients?
A4: We provide 24-hour multilingual online technical guidance, complete operation manuals and remote video training. All machines enjoy a full 2-year warranty.
Why Choose SanSong Melt?
-
Professional Precious Metal Equipment ManufacturerWe focus on the R&D and manufacturing of melting, casting, granulating and rolling equipment for precious metals. Our products are widely used in jewelry factories, refineries, dental material factories and electronic material enterprises.
-
Strict Quality ControlEach machine undergoes full-load testing and aging inspection before delivery. Core components are selected for stable performance and long-term continuous operation.
-
Factory Direct PriceWe provide factory direct sales without intermediate markup, offering competitive pricing for standard machines and custom solutions.
-
Ready Stock and Fast DeliveryStandard models are available in stock, helping customers shorten procurement cycles and start production quickly.
-
Customization and OEM/ODM ServiceWe accept custom vacuum systems, power parameters, mold designs and private label services.
-
Global After-Sales SupportWe provide 2-year warranty, online technical support, remote commissioning guidance and operator training.
