50kg 380V High Vacuum Ingot Casting Machines For Gold Adjustable Heating Power
| MOQ: | 1unit |
| Price: | negotiable |
| Standard Packaging: | Outer packing: Wooden case |
| Delivery Period: | 10-15 working days |
| Payment Method: | T/T,L/C |
| Supply Capacity: | 100,00units per month |
Detail Information
Place of Origin
Shenzhen, China
Brand Name
OEM & ODM
Certification
ISO, CE, SGS
Model Number
SSM-HVCM50
Product Name:
High Vacuum Continuous Casting Equipment
Furnacetype:
High Frequency
Rated Voltage:
380V, 3 Phases, 50/60Hz
Rated Power:
0-30KW
Profile Types:
Rods, Wires, Plates, Custom Semi-Finished Profiles
Melting Temperature:
Maximum Up To 1500℃
Control System:
Digital/PLC Control With Temperature Monitoring
Applicable Materials:
Gold, K-gold, Silver, Copper & Related Alloys
Production Mode:
Continuous 24/7 Operation
Working Environment:
High Vacuum / Optional Inert Gas Protection
Certification:
ISO, CE And SGS
Other Service:
Customizable, OEM & ODM Available, One-stop Solutions Provided
Highlight:
50kg Ingot Casting Machines
,High Vacuum Ingot Casting Machines
,Precious Metal Continuous Casting Machine
Product Description

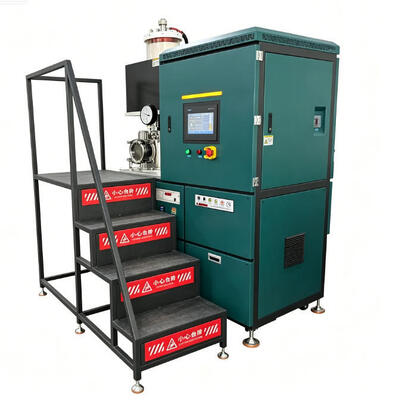

50kg 380V High Vacuum Ingot Casting Machines For Gold Adjustable Heating Power
Compact High Vacuum Precious Metal Continuous Caster
1. Product Overview
The SSM-HVCM50 is a high-capacity compact high vacuum continuous casting equipment designed for high-purity precious metal production. It integrates high vacuum sealing melting, induction heating and down-draw continuous forming technology to effectively reduce oxidation, volatile loss and internal porosity during the casting process.
This model supports both high vacuum and ultra-high vacuum configurations, making it suitable for gold, silver, copper and various precious metal alloys. It can continuously produce rods, strips, tubes, plates and custom cross-section blanks with stable density and low impurity levels.
With a gold melting capacity of 50kg and adjustable heating power from 0 to 30KW, the SSM-HVCM50 is ideal for high-end refineries, dental alloy manufacturers, electronic material factories and precious metal processing enterprises that require strict purity control.
2. Key Advantages
✅ High Vacuum Protection for High-Purity Casting
Supports high vacuum (10⁻¹ ~ 10⁻⁵Pa) and ultra-high vacuum (<10⁻⁵Pa) options. The fully sealed melting chamber isolates oxygen, helping to reduce metal oxidation, volatile loss and surface contamination.
✅ 50kg Gold Capacity with Adjustable Power
Offers a maximum gold melting capacity of 50kg with 0–30KW stepless adjustable heating power. It adapts well to different alloy formulas and production batch requirements.
✅ Stable Temperature Control for Consistent Quality
Equipped with a high-precision temperature control system to maintain a stable molten pool. This helps reduce alloy segregation, improves material density and ensures consistent casting results across batches.
✅ Multi-Profile Production in One Machine
By replacing different crystallizer molds, the machine can produce rods, strips, tubes, plates and custom-shaped blanks. It supports flexible production planning and reduces the need for additional equipment investment.
✅ Compact Integrated Structure
Designed with a compact footprint and integrated layout, the machine is easier to install and suitable for factories with limited workshop space.
✅ Factory Direct Supply, Ready Stock Available
As a professional precious metal processing equipment manufacturer, we offer factory direct pricing, reliable quality control and fast delivery. Standard models are available for immediate purchase.
✅ Customization, OEM & ODM Supported
We support custom vacuum configuration, power adjustment, mold design, equipment parameter optimization and OEM/ODM private labeling to meet different production requirements.
3. Working Principle
-
Sealed Feeding and Vacuum PumpingPrecious metal raw materials are placed into the crucible, and the chamber is fully sealed and evacuated to reach the required vacuum level before heating.
-
Induction Melting Under VacuumThe high-frequency induction heating system rapidly melts the raw materials under vacuum atmosphere, forming a homogeneous molten pool with minimal oxidation.
-
Down-Draw Continuous FormingMolten metal flows into the water-cooled crystallizer under gravity. The servo traction system pulls the solidified blank downward at a controlled speed, realizing continuous one-step forming.
-
Discharge and Downstream ConnectionThe continuously cast profiles are discharged at a fixed height and can be directly connected with rolling mills, wire drawing machines, cutting machines and other downstream equipment.
4. Technical Parameters
| Item | SSM-HVCM50 |
|---|---|
| Model No. | SSM-HVCM50 |
| Voltage | 380V, 50/60Hz, 3 Phase |
| Power | 0–30KW |
| Vacuum Degree | High vacuum: 10⁻¹ ~ 10⁻⁵Pa; Ultra-high vacuum: <10⁻⁵Pa, customizable |
| Capacity | 50kg (Gold) |
| Max. Temperature | 1500°C |
| Water Pressure | 0.2–0.4MPa |
| Temperature Accuracy | ±1°C |
| Water Temperature | 18–25°C |
| Applications | Gold, Silver, Copper, alloys |
| Dimensions | 1620 × 1280 × 1980mm |
| Weight | Approx. 1400kg |
| Castable Profiles | Rods, Strips, Tubes, Plates, custom sections |
Note: Vacuum level, power parameters and crystallizer molds can be customized according to specific production requirements.
5. Target Applications
- High-purity precious metal refineries
- Dental alloy manufacturing factories
- Electronic and semiconductor material producers
- High-end jewelry alloy production bases
- Precious metal material testing laboratories
- Industrial alloy processing enterprises
6. FAQ
Q1: What is the main difference between high vacuum and ultra-high vacuum configurations?
A1: High vacuum is suitable for most high-purity gold, silver and copper alloy production. Ultra-high vacuum is recommended for applications requiring extremely low impurity levels, such as dental alloys, electronic materials and laboratory research.
Q2: Can this machine cast custom-shaped profiles?
A2: Yes. We can design and manufacture custom crystallizer molds according to your technical drawings.
Q3: Do you offer ready stock for this model?
A2: Yes, standard models are available for immediate purchase. Please contact us for current stock status and delivery time.
Q4: Can you support OEM or ODM customization?
A2: Yes. We support OEM private labeling, ODM parameter adjustment, custom vacuum configuration and production line layout design.
Why Choose SanSong Melt?
-
Professional Precious Metal Equipment ManufacturerWe focus on the R&D and manufacturing of melting, casting, granulating and rolling equipment for precious metals. Our products are widely used in jewelry factories, refineries, dental material factories and electronic material enterprises. -
Strict Quality ControlEach machine undergoes full-load testing and aging inspection before delivery. Core components are selected for stable performance and long-term continuous operation.
-
Factory Direct PriceWe provide factory direct sales without intermediate markup, offering competitive pricing for standard machines and custom solutions.
-
Ready Stock and Fast DeliveryStandard models are available in stock, helping customers shorten procurement cycles and start production quickly.
-
Customization and OEM/ODM ServiceWe accept custom vacuum systems, power parameters, mold designs and private label services.
-
Global After-Sales SupportWe provide 2-year warranty, online technical support, remote commissioning guidance and operator training.
