Compact Ingot Casting Machines 35KW Automatic Vacuum Gold Bar Casting Machine
| MOQ: | 1unit |
| Price: | negotiable |
| Standard Packaging: | Outer packing: Wooden case |
| Delivery Period: | 10-15 working days |
| Payment Method: | T/T,L/C |
| Supply Capacity: | 100,00units per month |
Detail Information
Place of Origin
Shenzhen, China
Brand Name
OEM & ODM
Certification
ISO, CE, SGS
Model Number
SSM-GB1 automatic vacuum ingot casting machine
Product Name:
Automatic Gold Bar Vacuum Casting Machine
Casting Capacity:
1kg (Gold Equivalent); Supports 2×500g Bars Or 1×1kg Bar Per Batch
Melting Temperature:
Maximum Up To 1550℃
Casting Cycle Time:
4–5 Minutes Per Batch
Control System:
Digital/PLC Control With Temperature Monitoring
Rated Power:
35KW
Applicable Materials:
Gold, K-gold, Silver, Copper & Related Alloys
Furnacetype:
Medium Frequency/High Frequency
Power Supply:
380V, 3 Phase, Depending On Different Models
Energy Efficiency:
Higher Energy Efficiency Than Traditional Melting Furnaces
Other Service:
Customizable, OEM & ODM Available, One-stop Solutions Provided
Highlight:
Ingot Casting Machines 35KW
,Vacuum Gold Bar Casting Machine
,Compact Vacuum Casting Machine
Product Description

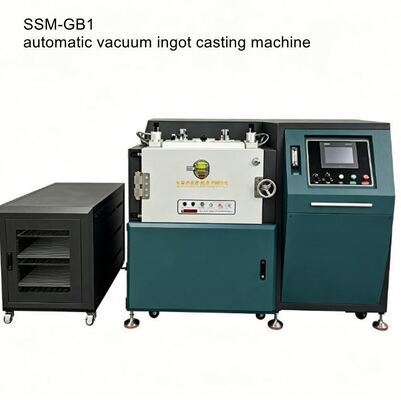

35KW Compact Vacuum Ingot Casting Machine For Gold Automatic Gold Bar Vacuum Casting Machine 1kg
1. Product Overview
The SSM-GB1 automatic vacuum ingot casting machine is a professional precision casting device specially developed for the precious metal industry. It operates under high vacuum environment of 10⁻²~10⁻³ mbar, equipped with optional argon or nitrogen inert gas protection to completely isolate air and oxygen. This equipment effectively eliminates oxidation, surface ripples and internal pores of molten metals, producing mirror-grade ingots that meet LBMA trading standards.
Adopting electromagnetic induction heating and full PLC automatic control, the machine features compact structure, stable performance and easy operation. It is widely used for casting gold, K-gold, silver and copper ingots in jewelry workshops, precious metal refineries, bullion trading enterprises and scientific research laboratories. With extremely low metal loss rate and over 99% finished product qualification rate, it is an ideal upgrade solution to replace traditional manual and semi-automatic casting equipment.
2. Working Principle
This machine adopts vacuum induction melting and pressure casting technology. Firstly, the internal chamber is evacuated to form a high-vacuum environment, and inert protective gas can be filled as required. Then the induction heating system melts precious metals evenly. After reaching the preset temperature, the crucible tilts automatically, and the pressure difference drives liquid metal to fill the precision mold. Finally, the ingot cools and solidifies in an oxygen-free sealed space, and finished products with smooth surface and no oxidation are obtained after demolding.
3. Product Features & Advantages
- Superior Anti-oxidation Performance: High vacuum plus inert gas protection thoroughly prevents metal oxidation, controlling the precious metal loss rate below 0.1%.
- High-Quality Finished Products: Effectively avoids pores, shrinkage and deformation, delivers mirror-grade ingots fully compliant with LBMA international standards, with qualification rate up to 99%.
- Famous Brand Core Components: Key electric and pneumatic parts are imported from world-renowned brands , ensuring long-term stable operation.
- Intelligent PLC Control: Supports one-key start & stop, free adjustment of temperature, vacuum degree and working time. Built-in fault self-diagnosis and emergency stop function for safer operation.
- Efficient Heating & Cooling System: 35KW induction heating realizes fast melting. Matched with water-cooled vacuum chamber, it accelerates crystallization and prevents equipment overheating.
- Low Labor Requirement: Simple operation logic. Ordinary workers can be proficient after short-term training, greatly reducing labor costs and dependence on skilled workers.
- Flexible Customization: Custom molds are available to produce ingots in different sizes, shapes and weights according to actual production demands.
- High Safety: Fully sealed structure without open flame, the ambient temperature stays close to room temperature, eliminating high-temperature scald risks.
4. Technical Parameters
| Item | SSM-GB1 Automatic Gold Bar Vacuum Casting Machine |
|---|---|
| Model No. | SSM-GB1 |
| Power Supply | 380V, 50/60Hz, 3 Phases |
| Rated Power | 35KW |
| Max Working Temperature | 1550℃ |
| Casting Capacity | 1kg (Gold equivalent); supports 2×500g bars or 1×1kg bar per batch |
| Casting Cycle Time | 4–5 minutes per batch |
| Applicable Materials | Gold, K-gold, Silver, Copper & related alloys |
| Machine Dimensions | 970×760×1100mm |
| Net Weight | Approx. 255kg |
Above parameters are for reference only. Partial specifications can be customized. Please contact our professional customer service for detailed information.
5. FAQ (Frequently Asked Questions)
Q1: What kinds of metals can this machine process?
A1: It is mainly designed for gold, K-gold, silver, copper and their various alloys, perfectly meeting the production demands of precious metal processing industry.
Q2: Which protective gas is supported for anti-oxidation?
A2: The machine is compatible with high-purity argon and nitrogen. You can select the suitable gas according to your production budget and process requirements.
Q3: What is the metal loss rate during casting?
A3: Benefiting from vacuum and inert gas protection, the loss rate of precious metal is controlled within 0.1%, much lower than traditional open casting methods.
Q4: Can I customize the size and shape of ingots?
A4: Yes. We provide professional mold customization service. We can tailor-make molds to produce standard bars, special-shaped ingots, gold beans and craft embossed ingots as your requests.
Q5: Is it difficult to operate this equipment?
A5: No. The machine adopts integrated PLC touch control with preset programs. Workers can master daily operation after simple training, no professional technical background is required.
Q6: Are spare parts easy to purchase after sales?
A6: All core components adopt universal famous-brand parts with wide market coverage. We also provide long-term global spare parts supply service to ensure your continuous production.
Why Choose Sansongmelt?
SanSong Melt is a professional manufacturer focusing on R&D, production and sales of precious metal processing equipment. We deliver reliable products and thoughtful services to clients worldwide for long-term cooperation:
- Custom One-Stop Solutions:We provide tailored melting and casting solutions covering equipment selection, mold customization and professional process guidance.
- 2-Year Extended Warranty:We offer an industry-leading 2-year warranty, one year longer than most competitors to fully protect your investment.
- 24/7 After-sales Support:Our professional team is online around the clock to solve technical and operational problems and reduce production downtime.
- Factory Direct Price:As direct manufacturer, we cut out middlemen and offer cost-effective factory prices for all equipment.
- Authoritative Global Certifications:All machines pass ISO, CE and SGS certifications, complying with international quality and safety standards.
- Professional R&D Team:Our experienced R&D experts keep optimizing products to provide advanced and practical technical solutions.
Contact Us
If you have any questions about equipment parameters, customized solutions, quotations, technical support or cooperation matters, please feel free to contact our professional sales team. We provide one-stop customized precious metal processing solutions for global customers and reply to your inquiries in the shortest time.
