4KG High Capacity Vacuum Ingot Casting Machines 60KW For Gold / Silver
| MOQ: | 1unit |
| Price: | negotiable |
| Standard Packaging: | Outer packing: Wooden case |
| Delivery Period: | 10-15 working days |
| Payment Method: | T/T,L/C |
| Supply Capacity: | 100,00units per month |
Detail Information
Place of Origin
Shenzhen, China
Brand Name
OEM & ODM
Certification
ISO, CE, SGS
Model Number
SSM-GB4 automatic vacuum ingot casting machine
Product Name:
Automatic Gold Bar Vacuum Casting Machine
Casting Capacity:
4kg (Gold Equivalent); Supports 4×1kg Bars Or 8×500g Bars Per Batch
Melting Temperature:
Maximum Up To 1550℃
Casting Cycle Time:
10 Minutes Per Batch
Control System:
Digital/PLC Control With Temperature Monitoring
Rated Power:
60KW
Applicable Materials:
Gold, K-gold, Silver, Copper & Related Alloys
Furnacetype:
High Frequency
Power Supply:
380V, 3 Phase
Energy Efficiency:
Higher Energy Efficiency Than Traditional Melting Furnaces
Other Service:
Customizable, OEM & ODM Available, One-stop Solutions Provided
Other Models:
From 1kg Up To 60kg (including 1kg, 4kg, 8kg, 12.5kg, 15kg, 30kg, And 60kg) To Meet Different Production Demands
Certification:
ISO, CE And SGS
Highlight:
Vacuum Ingot Casting Machines
,Ingot Casting Machines 60KW
,High Capacity Vacuum Casting Machine
Product Description

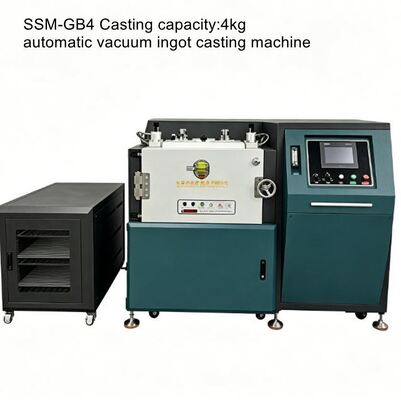

60KW 4KG High-Capacity Vacuum Ingot Casting Machine (SSM-GB Series) For Gold & Silver
1. Product Overview
The SSM-GB4 Automatic Vacuum Ingot Casting Machine is a high-capacity model in the SSM-GB series, designed for medium-to-large scale precious metal producers. Operating under high vacuum (10⁻²~10⁻³ mbar) with optional argon/nitrogen inert gas protection, it eliminates oxidation, surface ripples, and internal pores, producing mirror-grade gold, silver, K-gold, and copper ingots that meet LBMA trading standards.
The SSM-GB series offers flexible capacity options from 1kg up to 60kg (including 1kg, 2kg, 4kg, 8kg, 12.5kg, 15kg, 30kg, and 60kg models) to match production scales from small workshops to industrial refineries. The SSM-GB4 supports 4kg gold batches (4×1kg or 8×500g bars) in just 10 minutes, with a precious metal loss rate below 0.1% and a finished product qualification rate exceeding 99%, making it an ideal solution for scaling up production from traditional manual/semi-automatic casting methods.
2. Concise Working Principle
This machine adopts vacuum induction melting + pressure casting technology:
- Evacuate the chamber to form a high-vacuum environment, with optional inert gas backfilling for full oxygen isolation.
- The 60KW induction heating system rapidly melts precious metals evenly up to 1550℃.
- Automatic crucible tilting and pressure difference drive liquid metal to fill precision molds completely.
- Ingots solidify in an oxygen-free sealed space, resulting in bright, oxide-free products ready for use after demolding.
3. Product Features & Advantages
- Flexible Series Capacity Options: The SSM-GB series provides models with casting capacities from 1kg to 60kg, meeting production needs from small-batch to large-scale industrial manufacturing.
- Ultra-Low Metal Loss: Vacuum + inert gas protection controls precious metal loss below 0.1%, maximizing raw material yield.
- LBMA-Compliant Finished Products: Eliminates pores and deformation, delivering mirror-grade ingots with a qualification rate ≥99%.
- PLC Intelligent Control: One-key start/stop, adjustable temperature/vacuum/time, fault self-diagnosis, and emergency stop for safe, easy operation.
- Efficient Heating & Cooling: 60KW induction heating accelerates melting, paired with a water-cooled vacuum chamber to prevent overheating and speed crystallization.
- High Throughput: Supports 4kg gold batches (4×1kg or 8×500g bars) in 10 minutes, significantly improving production efficiency for medium-scale orders.
- Low Labor Dependency: Simple operation logic allows ordinary workers to master the process after short training, reducing labor costs.
- Customizable Solutions: Supports custom molds for standard bars, special-shaped ingots, and craft embossed products; equipment specifications can also be adjusted for specific needs.
- Safe & Clean Operation: Fully sealed design with no open flame, keeping the ambient temperature near room temperature and eliminating safety hazards.
4. Technical Parameters
| Item | SSM-GB4 Automatic Gold Bar Vacuum Casting Machine |
|---|---|
| Model No. | SSM-GB4 |
| Power Supply | 380V, 50/60Hz, 3 Phases |
| Rated Power | 60KW |
| Max Working Temperature | 1550℃ |
| Casting Capacity | 4kg (Gold equivalent); supports 4×1kg bars or 8×500g bars per batch |
| Casting Cycle Time | 10 minutes per batch |
| Applicable Materials | Gold, K-gold, Silver, Copper & related alloys |
| Machine Dimensions | 1490×845×1130mm |
| Net Weight | Approx. 445kg |
| Vacuum Pump Unit Dimensions | 860×550×660mm |
| Vacuum Pump Unit Weight | Approx. 94kg |
Above parameters are for reference only. Partial specifications can be customized. The SSM-GB series also offers models with casting capacities from 1kg up to 60kg (including 1kg, 4kg, 8kg, 12.5kg, 15kg, 30kg, and 60kg) to meet different production demands. Please contact our professional customer service for detailed information.
5. FAQ (Frequently Asked Questions)
Q1: What metals can this machine process?
A1: It is suitable for gold, K-gold, silver, copper, and their various alloys, meeting the production needs of the precious metal processing industry.
A1: It is suitable for gold, K-gold, silver, copper, and their various alloys, meeting the production needs of the precious metal processing industry.
Q2: What protective gases are supported?
A2: The machine is compatible with high-purity argon and nitrogen, which can be selected according to your production budget and process requirements.
A2: The machine is compatible with high-purity argon and nitrogen, which can be selected according to your production budget and process requirements.
Q3: What is the metal loss rate during casting?
A3: With vacuum and inert gas protection, the precious metal loss rate is controlled within 0.1%, far lower than traditional open casting methods.
A3: With vacuum and inert gas protection, the precious metal loss rate is controlled within 0.1%, far lower than traditional open casting methods.
Q4: Do you have other capacity models besides SSM-GB4?
A4: Yes. The SSM-GB series includes multiple models with casting capacities from 1kg to 60kg (including 1kg, 2kg, 4kg, 8kg, 12.5kg, 15kg, 30kg, and 60kg) to adapt to different production scales.
A4: Yes. The SSM-GB series includes multiple models with casting capacities from 1kg to 60kg (including 1kg, 2kg, 4kg, 8kg, 12.5kg, 15kg, 30kg, and 60kg) to adapt to different production scales.
Q5: Can I customize the size and shape of ingots?
A5: Yes. We provide professional mold customization services to produce standard bars, special-shaped ingots, gold beans, and craft embossed products as required.
A5: Yes. We provide professional mold customization services to produce standard bars, special-shaped ingots, gold beans, and craft embossed products as required.
Q6: Is operation difficult for ordinary workers?
A6: No. The PLC touch control system has preset programs, and workers can master daily operation after simple training without professional technical backgrounds.
A6: No. The PLC touch control system has preset programs, and workers can master daily operation after simple training without professional technical backgrounds.
