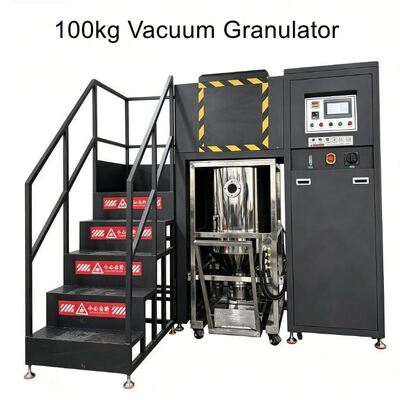

Industrial 100kg Induction Granulating Machine For Gold Silver Bullion
| MOQ: | 1unit |
| Price: | negotiable |
| Standard Packaging: | Outer packing: Wooden case |
| Delivery Period: | 10-15 working days |
| Payment Method: | T/T,L/C |
| Supply Capacity: | ？per month |
Detail Information
Place of Origin
CHINA
Brand Name
OEM & ODM
Certification
ISO, CE, SGS
Model Number
100kg precious metal granulating system
Product Name:
Granulating Machine
Max Melting Capacity:
100kg (or Customizable)
Melting Temperature:
Up To 1600°C (adjustable)
Single Batch Melting Time:
10–15 Mins (50kg Gold),Varies Based On Raw Metal Condition
Control System:
Digital/PLC Control With Temperature Monitoring
Heating Method:
Induction Heating
Applications:
Melting Metals Such As Gold,steel, Iron, Copper, Aluminum, Precious Metals
Furnacetype:
Medium Frequency/High Frequency
Power Supply:
380V, 50/60Hz, 3 Phase
Energy Efficiency:
High Energy Efficiency Compared To Conventional Furnaces
Frequency Range:
1 KHz To 60 KHz
Safety Features:
Over-temperature Protection, Automatic Shut-off, Grounding
Highlight:
Induction Granulating Machine
,Industrial Granulating Machine
,100kg Granulating Machine
Product Description
Industrial 100kg Induction Granulating Machine For Gold Silver Bullion With Mass Production
Product Description:
Sansongmelt 100kg Precious Metals Granulating System, Automatic Gold Silver Copper Pellet Making Machine with Optional Argon Shield & 2-Year Warranty
Product Overview
The 100kg Precious Metals Granulating System is a heavy-duty mass-production pellet-making equipment independently developed by Sansongmelt, specially built for large precious metal refineries, big jewelry raw material factories and investment bullion manufacturers. Different from small and medium-sized granulators, this machine supports a maximum single melting capacity of 100kg gold equivalent, greatly cutting repeated feeding and melting cycles to maximize daily output.
It is equipped with a 60kW medium-frequency induction heating module, ±1℃ precise temperature control system and full water-cooled heating chamber & cover as standard configuration. Clients can choose optional argon inert gas protection device to reduce precious metal oxidation and extend crucible service life. Adopting proven German granulation technology and imported core electric & pneumatic components, this granulator runs stably for long-hour continuous production, perfectly processing gold, silver, copper and all kinds of precious metal alloys to produce smooth, uniform round metal pellets for jewelry casting and bullion manufacturing.
It is equipped with a 60kW medium-frequency induction heating module, ±1℃ precise temperature control system and full water-cooled heating chamber & cover as standard configuration. Clients can choose optional argon inert gas protection device to reduce precious metal oxidation and extend crucible service life. Adopting proven German granulation technology and imported core electric & pneumatic components, this granulator runs stably for long-hour continuous production, perfectly processing gold, silver, copper and all kinds of precious metal alloys to produce smooth, uniform round metal pellets for jewelry casting and bullion manufacturing.
Working Principle
Working Principle
- Raw Material Feeding & Induction Melting
Put bulk gold, silver, copper or alloy scraps into the melting crucible. The built-in 60kW high-power induction heater rapidly heats and melts all raw materials, while the ±1℃ closed-loop PID temperature controller keeps stable melting temperature within the whole chamber.
- Optional Argon Anti-Oxidation Protection
If the argon protection function is enabled, inert argon gas fills the sealed heating chamber to isolate air oxygen, preventing molten precious metal from oxidation and dark discoloration, which also slows down crucible wear.
- Water-Cooled Pellet Forming Process
The fully melted, evenly fluid metal liquid flows through precision casting nozzles, dripping into the matched independent circulating water cooling tank. High-temperature metal droplets instantly cool and solidify into smooth spherical precious metal pellets.
- Finished Pellet Collection
After the full granulation cycle completes, users can collect qualified gold, silver or alloy pellets directly for subsequent jewelry lost-wax casting or precious metal recasting procedures.
Core Product Features
- Super Large 100kg Single Batch Capacity
Max 100kg gold equivalent melting capacity per furnace, ideal for large-scale refineries with high daily output demands, significantly improving production efficiency and reducing repetitive melting labor.
- 60KW High-Efficiency Induction Heating
Powerful 60kW heating unit realizes fast melting of large-volume metal raw materials, matched with full water-cooled heating chamber and cover to avoid overheating during long-time operation.
- ±1℃ Ultra Precise Temperature Control
Advanced PID temperature control system keeps temperature fluctuation within ±1℃, guaranteeing consistent molten metal fluidity, uniform pellet size and lower defective rate of finished metal beads.
- Optional Argon Inert Gas Protection
Customizable argon protection module cuts precious metal oxidation loss during melting, prolongs crucible service life and lowers long-term consumable replacement costs.
- Split Independent Water Cooling System
Comes with a dedicated matched cooling water tank, providing stable circulating water cooling for the heating chamber and granulation zone, supporting 24-hour non-stop full-load mass production.
- Mature German Granulation Technology & Imported Core Parts
Adopt reliable German granulation craftsmanship, all key electrical and pneumatic spare parts are imported world-class brands, ensuring low machine failure rate and stable long-term operation.
- Wide Compatibility for Multiple Precious Metals
Suitable for melting and granulating gold, silver, copper and all types of precious metal alloys, one machine meets diverse raw material production needs of large metal processing plants.
- Simple Operation & Low Maintenance Cost
Intuitive control panel for easy parameter setting and one-key start of full granulation process; integrated machine structure simplifies daily cleaning and routine maintenance work.
| Item | Specification | Remarks |
|---|---|---|
| Model No. | SSM-GM100 | Sansongmelt exclusive model, customizable |
| Full Product Name | 100kg Precious Metals Granulating System | For round gold/silver/copper alloy pellet production |
| Rated Melting Capacity | 100kg (Gold Equivalent) | Standard benchmark based on pure gold |
| Power Supply | 380V, 50/60Hz, 3 Phase | Customizable voltage for overseas markets |
| Rated Heating Power | 60kW | Medium-frequency induction heating system |
| Maximum Working Temperature | 1600°C | Covers all mainstream precious metals and alloys |
| Temperature Control Accuracy | ±1°C | Closed-loop PID constant temperature control |
| Heating Chamber Structure | Full water-cooled heating chamber & cover | Standard equipped for heat dissipation |
| Optional Auxiliary Function | Argon inert gas protection device | Reduce oxidation loss & extend crucible lifespan |
| Applicable Raw Materials | Gold, Silver, Copper, precious metal alloys | Jewelry raw material & investment bullion production |
| Main Machine Overall Dimensions | 116 × 60 × 132 cm | Estimated size, customizable |
| Net Weight of Main Machine | 163kg | Excludes cooling tank and spare parts |
| Matching Cooling Water Tank Size | 116 × 50 × 75 cm | Standard supporting water tank |
| Net Weight of Cooling Tank | 36.5kg | Independent circulating water cooling unit |
Disclaimer: All above technical parameters are for reference only. To get complete technical drawings, detailed custom configuration plans and official specification documents, please consult our professional sales team.
3.Standard Technical Parameters
Disclaimer: The above parameters are for reference only. For detailed specifications, custom configurations and complete technical documents, please contact our professional sales team for further consultation.
4.Application Areas
- Jewelry manufacturing and processing factories
- Precious metal recycling and refining centers
- Metal casting and molding workshops
- Metallurgical and industrial processing enterprises
- Goldsmith workshops and precious metal production plants
- Investment bullion and metal ingot production
- Laboratory and small-scale industrial melting
Why Choose SansongMelt?
1. Custom Melting & Casting Solutions
We provide one-stop, tailored melting and casting solutions for your production needs, from equipment selection to process guidance.
2. 2-Year Warranty
We offer an industry-leading 2-year warranty for all equipment — 1 year longer than most competitors, protecting your investment long-term.
3. Strong 24/7 After-sales Support
Our professional after-sales team is available online 24 hours a day to solve your problems quickly and minimize production downtime.
4. Factory Direct Price
As a direct manufacturer, we eliminate middleman markup to offer you competitive, preferential prices.
5. Fast & Reliable Delivery
Sufficient inventory of all melting equipment ensures short lead times, so you receive your machines as soon as possible.
6. AAAAA Enterprise Qualification
We hold the government-issued AAAAA enterprise title, proving our outstanding strength and credibility in the industry.
7. Strong R&D Team
Our R&D team is composed of top industry experts, committed to delivering leading and customized technical solutions.
8. ISO / CE / SGS Certified
All machines are certified by professional, authoritative bodies (ISO, CE, SGS), guaranteeing reliable quality and compliance with global standards.
Contact Us
Ready to upgrade your precious metal pellet production line and cut down raw material loss effectively?
Send us an inquiry right now to get exclusive factory price, free machine blueprint drawings, real gold & silver pellet samples and personalized production plans matched to your daily production capacity. Our professional sales team will reply to your message within 24 hours and solve all your equipment questions.
Send us an inquiry right now to get exclusive factory price, free machine blueprint drawings, real gold & silver pellet samples and personalized production plans matched to your daily production capacity. Our professional sales team will reply to your message within 24 hours and solve all your equipment questions.
We look forward to cooperating with you.
